b) CORROSION PROBE ASSEMBLIES

Purpose: Probe assemblies are generally used where on-line corrosion rate readings are required. The corrosion rate can be determined without the removal of probe from the system.

Models: High pressure Flanged and Flare weld design, Retractable design

Types: Electric Resistance probes, LPR Probes (for conductive medium), Sand Probes

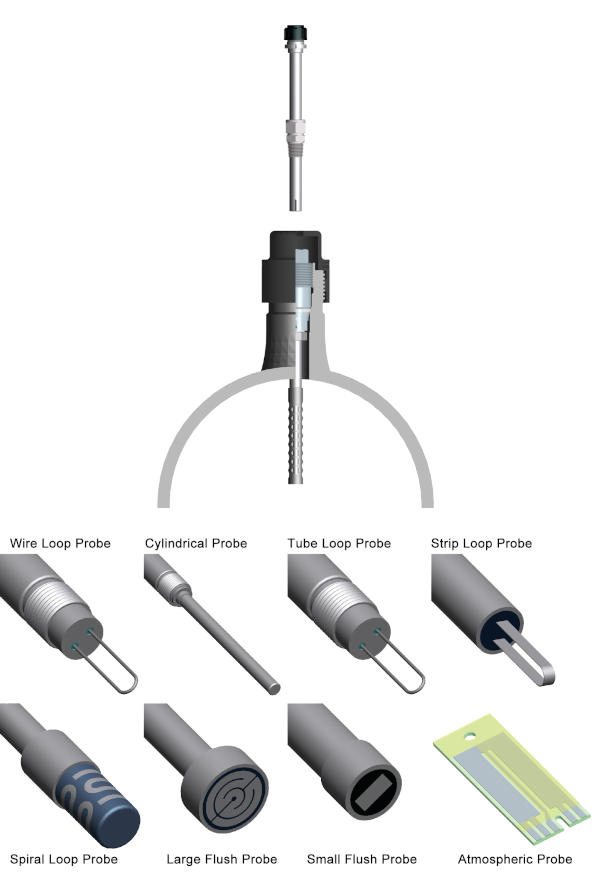

Probe end models: Wire Loop Probes, Flush Design, Cylindrical probes, tube loop

Material Grades: Customized material grades possible for Probe body and element

Measurement: Online readings are obtained with a hand held Data Logger, Remote Data Logger, High resolution transmitters etc.

c) CORROSION COUPON ASSEMBLIES

Purpose: Corrosion coupons are an accurate means of monitoring of corrosion rate by carrying the weight loss analysis of the exposed coupon, and calculating the corrosion rate of the coupon, over the exposed period. Corrosion coupons are periodically retrieved from the system online, by using a Retrieval Tool and Service Valve.

Models: High pressure Flanged and Flare weld design, Retractable design

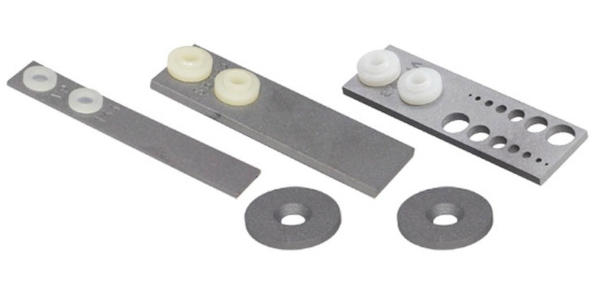

Coupon models: Flat Strip, Flush Disc, Cylindrical, Welded, Ladder etc.

Material Grades: Customized material grades possible  for Coupons
